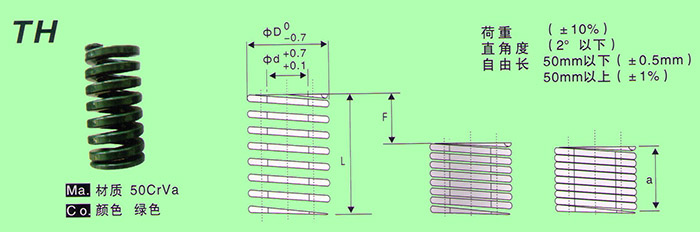

绿色模具弹簧

信息详细



No 外径
( D ) 		内径
( d ) 		自由长
( L )
定数
kgf/mm
 30万 50万 100万
压缩量
mm 		何重
sgf{n} 		压缩量
mm 		何重
sgf{n} 		压缩量
mm 		何重
sgf{n}
TH6×10 10 8.8 2.4 2.2 1.9
15 15 5.87 3.6 3.2 2.9
20 20 4.41 4.8 4.3 3.8
25 25 3.51 6 5.4 4.8
30 30 2.92 7.2 6.5 5.8
35 35 2.53 8.4 7.5 6.7
40 40 2.21 9.6 8.6 7.7
45 45 1.96 10.8 9.7 8.6
50 50 1.77 12 10.8 9.6
55 55 1.6 13.2 11.8 10.6
60 60 1.46 14.4 13 11.5
TH8×10 8 4 10 8.8 2.4 21
{206.0} 		2.2 19
{186.3} 		1.9 17
{166.7}
15 15 5.87 3.6 3.2 2.9
20 20 4.41 4.8 4.3 3.8
25 25 3.51 6 5.4 4.8
30 30 2.92 7.2 6.5 5.8
35 35 2.53 8.4 7.5 6.7
40 40 2.21 9.6 8.6 7.7
45 45 1.96 10.8 9.7 8.6
50 50 1.77 12 10.8 9.6
55 55 1.6 13.2 11.8 10.6
60 60 1.46 14.4 13 11.5
TH10×20 10 5 20 6.25 4.8 30
{294} 		4.3 27
{265} 		3.8 24
{235}
25 25 5 6 5.4 4.8
30 30 4.16 7.2 6.5 5.8
35 35 3.57 8.4 7.5 6.7
40 40 3.15 9.6 8.6 7.7
45 45 2.77 10.8 9.7 8.6
50 50 2.5 12 10.8 9.6
55 55 2.27 13.2 11.8 10.6
60 60 2.08 14.4 13 11.5
65 65 1.92 15.6 14 12.5
70 70 1.79 16.8 15.1 13.4
75 75 1.67 18 16.2 14.4
80 80 1.56 19.2 17.3 15.4
TH12×20 12 6 20 8.9 4.8 43
{422} 		4.3 38
{373} 		3.8 34
{333}
25 25 7.1 6 5.4 4.8
30 30 5.9 7.2 6.5 5.8
35 35 5.11 8.4 7.5 6.7
40 40 4.47 9.6 8.6 7.7
45 45 3.39 10.8 9.7 8.6
50 50 3.58 12 10.8 9.6
55 55 3.25 13.2 11.8 10.6
60 60 2.98 14.4 13 11.5
65 65 2.74 15.6 14 12.5
70 70 2.54 16.8 15.1 13.4
75 75 2.37 18 16.2 14.4
80 80 2.21 19.2 17.3 15.4
TH14×25 14 7 25 9.83 6 59
{579} 		5.4 53
{520} 		4.8 47
{461}
30 30 8.19 7.2 6.5 5.8
35 35 7.02 8.4 7.5 6.7
40 40 6.14 9.6 8.6 7.7
45 45 5.46 10.8 9.7 8.6
50 50 4.19 12 10.8 9.6
55 55 4.46 13.2 11.8 10.6
60 60 4.09 14.4 13 11.5
65 65 3.78 15.6 14 12.5
70 70 3.51 16.8 15.1 13.4
75 75 3.27 18 16.2 14.4
80 80 3.07 19.2 17.3 15.4
90 90 2.72 21.6 19.4 17.3
TH16×25 16 8 25 12.83 6 77
{755} 		5.4 69
{677} 		4.8 62
{608}
30 30 10.69 7.2 6.5 5.8
35 35 9.16 8.4 7.5 6.7
40 40 8.02 9.6 8.6 7.7
45 45 7.12 10.8 9.7 8.6
50 50 6.41 12 10.8 9.6
55 55 5.83 13.2 11.8 10.6
60 60 5.34 14.4 13 11.5
65 65 4.93 15.6 14 121.5
70 70 4.58 16.8 15.1 13.4
75 75 4.2 18 16.2 14.4
80 80 4.01 19.2 17.3 15.4
90 90 3.57 21.6 19.4 17.3
100 100 3.21 24 21.6 19.2
TH18×25 18 9 25 16.16 6 97
{951} 		5.4 87
{853} 		4.8 78
{765}
30 30 13.47 7.2 6.5 5.8
35 35 11.54 8.4 7.5 6.7
40 40 10.1 9.6 8.6 7.7
45 45 8.98 10.8 9.7 8.6
50 50 8.08 12 10.8 9.6
55 55 7.34 13.2 11.8 10.6
60 60 6.73 14.4 13 11.5
65 65 6.21 15.6 14 12.5
70 70 5.77 16.8 15.1 13.4
75 75 5.3 18 16.2 14.4
80 80 5.05 19.2 17.3 15.4
90 90 4.5 21.6 19.4 17.3
100 100 4.04 24 21.6 19.2
TH20×25 20 10 25 20 6 120
{1177} 		5.4 108
{1059} 		4.8 96
{941}
30 30 16.66 7.2 6.5 5.8
35 35 14.28 8.4 7.5 6.7
40 40 12.5 9.6 8.6 7.7
45 45 11.11 10.8 9.7 8.6
50 50 10 12 10.8 9.6
55 55 9.09 13.2 11.8 10.6
60 60 8.33 14.4 13 11.5
65 65 7.69 15.6 14 12.5
70 70 7.14 16.8 15.1 13.4
75 75 6.6 18 16.2 14.4
80 80 6.25 19.2 17.3 15.4
90 90 5.55 21.6 19.4 17.3
100 100 5 24 21.6 19.2
125 125 4 30 27 24
150 150 3.33 36 32.4 28.8
TH22×25 20 10 25 24 6 145
{1422} 		5.4 130
{1275} 		4.8 116
{1138}
30 30 20.13 7.2 6.5 5.8
35 35 17.3 8.4 7.5 6.7
40 40 15.1 9.6 8.6 7.7
45 45 13.4 10.8 9.7 8.6
50 50 12.08 12 10.8 9.6
55 55 10.9 13.2 11.8 10.6
60 60 10.06 14.4 13 11.5
65 65 9.2 15.6 14 12.5
70 70 8.63 16.8 15.1 13.4
75 75 8 18 16.2 14.4
80 80 7.55 19.2 17.3 15.4
90 90 6.71 21.6 19.4 17.3
100 100 6.04 24 21.6 19.2
125 125 4.83 30 27 24
150 150 4.02 36 32.4 28.8
TH25×25 25 12.5 25 31.2 6 187
{1834} 		5.4 169
{1657} 		4.8 150
{1471}
30 30 25.97+ 7.2 6.5 5.8
35 35 22.5 8.4 7.5 6.7
40 40 19.47 9.6 8.6 7.7
45 45 17.4 10.8 9.7 8.6
50 50 15.58 12 10.8 9.6
55 55 14.2 13.2 11.8 10.6
60 60 12.98 14.4 13 11.5
65 65 12 15.6 14 12.5
70 70 11.13 16.8 15.1 13.4
75 75 10.4 18 16.2 14.4
80 80 9.73 19.2 17.3 15.4
90 90 8.65 21.6 19.4 17.3
100 100 7.79 24 21.6 19.2
125 125 6.23 30 27 24
150 150 4.02 36 32.4 28.8
175 175 4.046 42 37.8 33.6
TH30×25 30 15 25 45 6 270
{2648} 		5.4 243
{2388} 		4.8 216
{2118}
30 30 37.5 7.2 6.5 5.8
35 35 32.4 8.4 7.5 6.7
40 40 28.12 9.6 8.6 7.7
45 45 25 10.8 9.7+ 8.6
50 50 22.5 12 10.8 9.6
55 55 20.4 13.2 11.8 10.6
60 60 18.75 14.4 13 11.5
65 65 17.3 15.6 14 12.5
70 70 16.07 16.8 15.1 13.4
75 75 15 18 16.2 14.4
80 80 14.06 19.2 17.3 315.4
90 90 12.5 21.6 19.4 17.3
100 10 11.25 24 21.6 19.2
125 125 9 30 27 24
150 150 7.5 36 32.4 28.8
175 175 6.24 42 37.8 33.6
200 200 9 48 43.2 38.4
TH35×40 35 17.5 40 38.22 9.6 367
{3599} 		8.6 330
{3236} 		7.7 293
{2873}
45 45 33.98 10.8 9.7 8.6
50 50 30.58 12 10.8 9.6
55 55 27.8 13.2 11.8 10.6
60 60 25.48 14.4 13 11.5
65 65 23.53 15.6 14 12.5
70 70 21.84 16.8 15.1 13.4
75 75 20.39 18 16.2 14.4
80 80 19.11 19.2 17.3 15.4
90 90 16.99 21.6 19.4 17.3
100 100 15.29 24 21.6 19.2
125 125 12.33 30 27 24
150 150 10.19 36 32.4 28.8
175 175 8.73 42 37.8 33.6
200 200 7.64 48 43.2 38.7
TH40×40 40 20 40 50 9.6 480
{4707} 		8.6 432
{4236} 		7.7 384
{3766}
50 50 40 12 10.8 9.6
60 60 33.33 14.4 13 11.5
70 70 28.57 16.8 15.1 13.4
80 80 25 19.2 17.3 15.4
90 90 22.22 21.6 19.4 17.3
100 100 20 24 21.6 19.2
125 125 16 30 27 24
150 150 13.33 36 32.4 28.8
175 175 11.42 42 37.8 33.6
200 200 10 48 43.2 38.4
250 250 8 60 54 48
TH50×50 50 25 50 62.5 12 750
{7355} 		10.8 675
{6619} 		9.6 600
{588}
60 60 52.8 14.4 13 11.5
70 70 44.64 16.8 15.1 13.4
80 80 39.06 19.2 17.3 15.4
90 90 34.72 21.6 19.4 17.3
100 100 31.25 24 21.6 19.2
125 125 25 30 27 24
150 150 20.83 36 32.4 28.8
175 175 17.85 42 37.8 33.6
200 200 15.62 48 43.2 38.4
250 250 12.5 60 54 48
300 300 10.41 72 64.8 57.6
TH60×60 60 30 60 75 14.4 1080
{10591} 		13 973
{9542} 		11.5 864
{8473}
70 70 64.28 16.8 15.1 13.4
80 80 56.25 19.2 17.3 15.4
90 90 50 21.6 19.4 17.3
100 100 45 24 21.6 19.2
125 125 36 30 27 24
150 150 30 36 32.4 28.8
175 175 25.71 42 37.8 33.6
200 200 22.5 48 43.2 38.4
250 250 18 60 54 48
300 300 15 72 64.8 57.6
