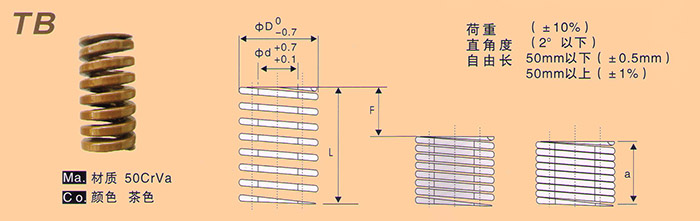

茶色模具弹簧

信息详细



No 外径
( D ) 		内径
( d ) 		自由长
( L )
定数
kgf/mm
 30万 50万 100万
压缩量
mm 		何重
sgf{n} 		压缩量
mm 		何重
sgf{n} 		压缩量
mm 		何重
sgf{n}
TB6×10 10 16.94 2 1.8 1.6
15 15 10.8 3 2.7 2.4
20 20 8.13 4 3.6 3.2
25 25 6.5 5 4.5 4
30 30 5.42 6 5.4 4.8
35 35 4.64 7 6.3 5.6
40 40 4.1 8 7.2 6.4
45 45 3.61 9 8.1 7.2
50 50 3.33 10 9 8
55 55 3 11 9.9 8.8
60 60 2.75 12 10.8 9.6
TB8×10 8 4 10 16.94 2 33
{343.2} 		1.8 30
{304} 		1.6 26
{255}
15 15 10.8 3 2.7 2.4
20 20 8.13 4 3.6 3.2
25 25 6.5 5 4.5 4
30 30 5.42 6 5.4 4.8
35 35 4.64 7 6.3 5.6
40 40 4.1 8 7.2 6.4
45 45 3.61 9 8.1 7.2
50 50 3.33 10 9 8
55 55 3 11 9.9 8.8
60 60 2.75 12 10.8 9.6
TB10×20 10 5 20 11.25 4 45
{441} 		3.6 41
{402} 		3.2 36
{353}
25 25 9 5 4.5 4
30 30 7.5 6 5.4 4.8
35 35 6.43 7 6.3 5.6
40 40 5.63 8 7.2 6.4
45 45 5 9 8.1 7.2
50 50 4.5 10 9 8
55 55 4.09 11 9.9 8.8
60 60 3.75 12 10.8 9.6
65 65 3.47 13 11.7 10.4
70 70 3.21 14 12.6 11.2
75 75 3 15 13.5 12
80 80 2.82 16 14.4 12.8
TB12×20 12 6 20 14.5 4 58
{569} 		3.6 52
{510} 		3.2 46
{451}
25 25 11.6 5 4.5 4
30 30 9.67 6 5.4 4.8
35 35 8.29 7 6.3 5.6
40 40 7.25 8 7.2 6.4
45 45 8.44 9 8.1 7.2
50 50 5.8 10 9 8
55 55 5.27 11 9.9 8.8
60 60 4.83 12 10.8 9.6
65 65 4.44 13 11.7 10.4
70 70 4.13 14 12.6 11.2
75 75 3.85 15 13.5 12
80 80 3.61 16 14.4 12.8
TB14×25 14 7 25 15 5 70
{736} 		4.5 68
{667} 		4 60
{588}
30 30 12.5 6 5.4 4.8
35 35 10.72 7 6.3 5.6
40 40 9.38 8 7.2 6.4
45 45 8.34 9 8.1 7.2
50 50 7.5 10 9 8
55 55 6.82 11 9.9 8.8
60 60 6.25 12 10.8 9.6
65 65 5.77 13 11.7 10.4
70 70 5.36 14 12.6 11.2
75 75 5 15 13.5 12
80 80 4.69 16 14.4 12.8
90 90 4.17 18 16.2 14.4
TB16×25 16 8 25 20 5 100
{981} 		4.5 90
{883} 		4 80
{785}
30 30 16.67 6 5.4 4.8
35 35 14.29 7 6.3 5.6
40 40 12.5 8 7.2 6.4
45 45 11.11 9 8.1 7.2
50 50 10 10 9 8
55 55 9.09 11 9.9 8.8
60 60 8.34 12 10.8 9.6
65 65 7.69 13 11.7 10.4
70 70 7.14 14 12.6 11.2
75 75 6.67 15 13.5 12
80 80 6.25 16 14.4 12.8
90 90 5.56 18 16.2 14.4
100 100 5 20 18 16
TB18×25 18 9 25 25 5 125
{1266} 		4.5 113
{1108} 		4 100
{981}
30 30 20.84 6 5.4 4.8
35 35 17.86 7 6.3 5.6
40 40 15.63 8 7.2 6.4
45 45 13.89 9 8.1 7.2
50 50 12.5 10 9 8
55 55 11.37 11 9.9 8.8
60 60 10.84 12 10.8 9.6
65 65 9.62 13 11.7 10.4
70 70 8.93 14 12.6 11.2
75 75 8.34 15 13.5 12
80 80 7.82 16 14.4 12.8
90 90 6.95 18 16.2 14.4
100 100 6.26 20 18 16
TB20×25 20 10 25 32 5 160
{1569} 		4.5 144
{1412} 		4 128
{1255}
30 30 26.67 6 5.4 4.8
35 35 22.86 7 6.3 5.6
40 40 20 8 7.2 6.4
45 45 17.78 9 8.1 7.2
50 50 16 10 9 8
55 55 14.55 11 9.9 8.8
60 60 13.33 12 10.8 9.6
65 65 12.31 13 11.7 10.4
70 70 11.43 14 12.6 11.2
75 75 10.67 15 13.5 12
80 80 10 16 14.4 12.8
90 90 8.89 18 16.2 14.4
100 100 8 20 18 16
125 125 6.4 25 22.5 20
150 150 5.33 30 27 24
TB25×25 22 11 25 39 5 195
{1912} 		4.5 176
{1762} 		4 156
{1530}
30 30 32.5 6 5.4 4.8
35 35 27.86 7 6.3 5.6
40 40 24.38 8 7.2 6.4
45 45 21.67 9 8.1 7.2
50 50 19.5 10 9 8
55 55 17.73 11 9.9* 8.8
60 60 16.25 12 10.8 9.6
65 65 15 13 11.7 10.4
70 70 13.93 14 12.6 11
75 75 16 15 13.5 12
80 80 12.19 316 14.4 12.8
90 90 10.83 18 16.2 14.4
100 100 9.75 20 18 16
125 125 7.8 25 22.5 20
150 150 6.5 30 27 24
TB27×25 27 13.5 25 58 5 290
{2843} 		4.5 261
{2560} 		4 232
{2275}
30 30 48.33 6 5.4 4.8
35 35 41.43 7 6.3 5.6
40 40 36.25 8 7.2 6.4
45 45 32.22 9 8.1 7.2
50 50 29 10 9 8
55 55 26.36 11 9.9 8.8
60 60 24.17 12 10.8 9.6
65 65 22.31 13 11.7 10.4
70 70 20.71 14 12.6 11.2
75 75 19.33 15 13.5 12
80 80 18.13 16 14.4 12.8
90 90 16.11 18 16.2 14.4
100 100 14.5 20 18 16
125 125 11.6 25 22.5 20
150 150 9.67 30 27 24
175 175 8.26 35 31.5 28
TB30×25 30 15 25 72 5 360
{3530} 		4.5 324
{3177} 		4 288
{2824}
30 30 60 6 5.4 4.8
35 35 51.43 7 6.3 5.6
40 40 45 8 7.2 6.4
45 45 40 9 8.1 7.2
50 50 36 10 9 8
55 55 32.72 11 9.9 8.8
60 60 30 12 10.8 9.6
65 65 27.69 13 11.7 10.4
70 70 25.71 14 12.6 11.2
75 75 24 15 13.5 12
80 80 22.5 16 14.4 12.8
90 90 20 18 16.2 14.4
100 100 18 20 18 16
125 125 14.4 25 22.5 20
150 150 12 30 27 24
175 175 10.28 35 31.5 28
200 200 9 40 36 32
TB35×40 35 17.5 40 61.25 8 490
{4805} 		7.2 441
{4325} 		6.4 392
{3844}
45 45 54.44 9 8.1 7.2
50 50 49 10 9 8
55 55 44.54 11 9.9 8.8
60 60 40.83 12 10.8 9.6
65 65 37.69 13 11.7 10.4
70 70 35 14 12.6 11.2
75 75 32.67 15 13.5 12
80 80 30.62 16 14.4 12.8
90 90 27.22 18 16.2 14.4
100 100 24.5 20 18 16
125 125 19.6 25 22.5 20
150 150 16.33 30 27 24
175 175 14 35 31.5 28
200 200 12.5 40 36 32
TB40×40 40 20 40 80 8 640
{6276} 		7.2 576
{5649} 		6.4 512
{5021}
50 50 64 10 9 8
60 60 53.33 12 10.8 9.6
70 70 45.71 14 12.6 11.2
80 80 40 16 14.4 12.8
90 90 35.55 18 16.2 14.4
100 100 32 20 18 16
125 125 25.6 25 22.5 20
150 150 21.33 30 27 24
175 175 18.28 35 31.5 28
200 200 16 40 36 32
250 250 12.8 50 45 40
TB50×50 50 25 50 100 10 1000
{9807} 		9 900
{8826} 		8 800
{7845}
60 60 83.33 12 10.8 9.6
70 70 71.42 14 12.6 11.2
80 80 62.5 16 14.4 12.8
90 90 55.55 18 16.2 14.4
100 100 50 20 18 16
125 125 40 25 22.5 20
150 150 33.33 30 27 24
175 175 28.57 35 31.5 28
200 200 25 40 36 32
250 250 20 50 45 40
300 300 16.66 60 54 48
TB60×60 60 30 60 120 12 1400
{14122} 		10.8 1296
{12709} 		9.6 1152
{11297}
70 70 102.86 14 12.6 11.2
80 80 90 16 14.4 12.8
90 90 80 18 16.2 14.4
100 100 72 20 18 16
125 125 57.6 25 22.5 20
150 150 48 30 27 24
175 175 41.14 35 31.5 28
200 200 36 40 36 32
250 250 28.8 50 45 40
300 300 24 60 54 48
